Week 42 Solving differential equations and Convolutional (CNN)

In our discussions of ordinary differential equations we will also study the usage of Autograd in computing gradients for deep learning. For the documentation of Autograd and examples see the lectures slides from week 40 and the Autograd documentation.

Solving ODEs with Deep Learning

The Universal Approximation Theorem states that a neural network can approximate any function at a single hidden layer along with one input and output layer to any given precision.

Ordinary Differential Equations

An ordinary differential equation (ODE) is an equation involving functions having one variable.

In general, an ordinary differential equation looks like $$ \begin{equation} \label{ode} f\left(x, \, g(x), \, g'(x), \, g''(x), \, \dots \, , \, g^{(n)}(x)\right) = 0 \end{equation} $$

where $ g(x) $ is the function to find, and $ g^{(n)}(x) $ is the $ n $-th derivative of $ g(x) $.

The $ f\left(x, g(x), g'(x), g''(x), \, \dots \, , g^{(n)}(x)\right) $ is just a way to write that there is an expression involving $ x $ and $ g(x), \ g'(x), \ g''(x), \, \dots \, , \text{ and } g^{(n)}(x) $ on the left side of the equality sign in \eqref{ode}. The highest order of derivative, that is the value of $ n $, determines to the order of the equation. The equation is referred to as a $ n $-th order ODE. Along with \eqref{ode}, some additional conditions of the function $ g(x) $ are typically given for the solution to be unique.

The trial solution

Let the trial solution $ g_t(x) $ be $$ \begin{equation} g_t(x) = h_1(x) + h_2(x,N(x,P)) \label{_auto1} \end{equation} $$

where $ h_1(x) $ is a function that makes $ g_t(x) $ satisfy a given set of conditions, $ N(x,P) $ a neural network with weights and biases described by $ P $ and $ h_2(x, N(x,P)) $ some expression involving the neural network. The role of the function $ h_2(x, N(x,P)) $, is to ensure that the output from $ N(x,P) $ is zero when $ g_t(x) $ is evaluated at the values of $ x $ where the given conditions must be satisfied. The function $ h_1(x) $ should alone make $ g_t(x) $ satisfy the conditions.

As described previously, an optimization method could be used to minimize the parameters of a neural network, that being its weights and biases, through backward propagation.

Minimization process

For the minimization to be defined, we need to have a cost function at hand to minimize.

It is given that $ f\left(x, \, g(x), \, g'(x), \, g''(x), \, \dots \, , \, g^{(n)}(x)\right) $ should be equal to zero in \eqref{ode}. We can choose to consider the mean squared error as the cost function for an input $ x $. Since we are looking at one input, the cost function is just $ f $ squared. The cost function $ c\left(x, P \right) $ can therefore be expressed as $$ C\left(x, P\right) = \big(f\left(x, \, g(x), \, g'(x), \, g''(x), \, \dots \, , \, g^{(n)}(x)\right)\big)^2 $$

If $ N $ inputs are given as a vector $ \boldsymbol{x} $ with elements $ x_i $ for $ i = 1,\dots,N $, the cost function becomes $$ \begin{equation} \label{cost} C\left(\boldsymbol{x}, P\right) = \frac{1}{N} \sum_{i=1}^N \big(f\left(x_i, \, g(x_i), \, g'(x_i), \, g''(x_i), \, \dots \, , \, g^{(n)}(x_i)\right)\big)^2 \end{equation} $$

The neural net should then find the parameters $ P $ that minimizes the cost function in \eqref{cost} for a set of $ N $ training samples $ x_i $.

Minimizing the cost function using gradient descent and automatic differentiation

To perform the minimization using gradient descent, the gradient of $ C\left(\boldsymbol{x}, P\right) $ is needed. It might happen so that finding an analytical expression of the gradient of $ C(\boldsymbol{x}, P) $ from \eqref{cost} gets too messy, depending on which cost function one desires to use.

Luckily, there exists libraries that makes the job for us through automatic differentiation. Automatic differentiation is a method of finding the derivatives numerically with very high precision.

Example: Exponential decay

An exponential decay of a quantity $ g(x) $ is described by the equation $$ \begin{equation} \label{solve_expdec} g'(x) = -\gamma g(x) \end{equation} $$

The analytical solution of \eqref{solve_expdec} is $$ \begin{equation} g(x) = g_0 \exp\left(-\gamma x\right) \label{_auto2} \end{equation} $$

Having an analytical solution at hand, it is possible to use it to compare how well a neural network finds a solution of \eqref{solve_expdec}.

The function to solve for

The program will use a neural network to solve $$ \begin{equation} \label{solveode} g'(x) = -\gamma g(x) \end{equation} $$

where $ g(0) = g_0 $ with $ \gamma $ and $ g_0 $ being some chosen values.

The trial solution

with $ h_1(x) $ ensuring that $ g_t(x) $ satisfies some conditions and $ h_2(x,N(x, P)) $ an expression involving $ x $ and the output from the neural network $ N(x,P) $ with $ P $ being the collection of the weights and biases for each layer. For now, it is assumed that the network consists of one input layer, one hidden layer, and one output layer.

Setup of Network

In this network, there are no weights and bias at the input layer, so $ P = \{ P_{\text{hidden}}, P_{\text{output}} \} $. If there are $ N_{\text{hidden} } $ neurons in the hidden layer, then $ P_{\text{hidden}} $ is a $ N_{\text{hidden} } \times (1 + N_{\text{input}}) $ matrix, given that there are $ N_{\text{input}} $ neurons in the input layer.

The first column in $ P_{\text{hidden} } $ represents the bias for each neuron in the hidden layer and the second column represents the weights for each neuron in the hidden layer from the input layer. If there are $ N_{\text{output} } $ neurons in the output layer, then $ P_{\text{output}} $ is a $ N_{\text{output} } \times (1 + N_{\text{hidden} }) $ matrix.

Its first column represents the bias of each neuron and the remaining columns represents the weights to each neuron.

It is given that $ g(0) = g_0 $. The trial solution must fulfill this condition to be a proper solution of \eqref{solveode}. A possible way to ensure that $ g_t(0, P) = g_0 $, is to let $ F(N(x,P)) = x \cdot N(x,P) $ and $ A(x) = g_0 $. This gives the following trial solution: $$ \begin{equation} \label{trial} g_t(x, P) = g_0 + x \cdot N(x, P) \end{equation} $$

Reformulating the problem

A reformulation of out equation, \eqref{solveode}, must therefore be done, such that it describes the problem a neural network can solve for.

The neural network must find the set of weights and biases $ P $ such that the trial solution in \eqref{trial} satisfies \eqref{solveode}.

has been chosen such that it already solves the condition $ g(0) = g_0 $. What remains, is to find $ P $ such that $$ \begin{equation} \label{nnmin} g_t'(x, P) = - \gamma g_t(x, P) \end{equation} $$

More technicalities

The left hand side and right hand side of \eqref{nnmin} must be computed separately, and then the neural network must choose weights and biases, contained in $ P $, such that the sides are equal as best as possible. This means that the absolute or squared difference between the sides must be as close to zero, ideally equal to zero. In this case, the difference squared shows to be an appropriate measurement of how erroneous the trial solution is with respect to $ P $ of the neural network.

This gives the following cost function our neural network must solve for: $$ \min_{P}\Big\{ \big(g_t'(x, P) - ( -\gamma g_t(x, P) \big)^2 \Big\} $$

(the notation $ \min_{P}\{ f(x, P) \} $ means that we desire to find $ P $ that yields the minimum of $ f(x, P) $)

or, in terms of weights and biases for the hidden and output layer in our network: $$ \min_{P_{\text{hidden} }, \ P_{\text{output} }}\Big\{ \big(g_t'(x, \{ P_{\text{hidden} }, P_{\text{output} }\}) - ( -\gamma g_t(x, \{ P_{\text{hidden} }, P_{\text{output} }\}) \big)^2 \Big\} $$

More details

If the neural network evaluates $ g_t(x, P) $ at more values for $ x $, say $ N $ values $ x_i $ for $ i = 1, \dots, N $, then the total error to minimize becomes $$ \begin{equation} \label{min} \min_{P}\Big\{\frac{1}{N} \sum_{i=1}^N \big(g_t'(x_i, P) - ( -\gamma g_t(x_i, P) \big)^2 \Big\} \end{equation} $$

Letting $ \boldsymbol{x} $ be a vector with elements $ x_i $ and $ C(\boldsymbol{x}, P) = \frac{1}{N} \sum_i \big(g_t'(x_i, P) - ( -\gamma g_t(x_i, P) \big)^2 $ denote the cost function, the minimization problem that our network must solve, becomes $$ \min_{P} C(\boldsymbol{x}, P) $$

In terms of $ P_{\text{hidden} } $ and $ P_{\text{output} } $, this could also be expressed as $$ \min_{P_{\text{hidden} }, \ P_{\text{output} }} C(\boldsymbol{x}, \{P_{\text{hidden} }, P_{\text{output} }\}) $$

A possible implementation of a neural network

For simplicity, it is assumed that the input is an array $ \boldsymbol{x} = (x_1, \dots, x_N) $ with $ N $ elements. It is at these points the neural network should find $ P $ such that it fulfills \eqref{min}.

First, the neural network must feed forward the inputs. This means that $ \boldsymbol{x}s $ must be passed through an input layer, a hidden layer and a output layer. The input layer in this case, does not need to process the data any further. The input layer will consist of $ N_{\text{input} } $ neurons, passing its element to each neuron in the hidden layer. The number of neurons in the hidden layer will be $ N_{\text{hidden} } $.

Technicalities

For the $ i $-th in the hidden layer with weight $ w_i^{\text{hidden} } $ and bias $ b_i^{\text{hidden} } $, the weighting from the $ j $-th neuron at the input layer is: $$ \begin{aligned} z_{i,j}^{\text{hidden}} &= b_i^{\text{hidden}} + w_i^{\text{hidden}}x_j \\ &= \begin{pmatrix} b_i^{\text{hidden}} & w_i^{\text{hidden}} \end{pmatrix} \begin{pmatrix} 1 \\ x_j \end{pmatrix} \end{aligned} $$

Final technicalities I

The result after weighting the inputs at the $ i $-th hidden neuron can be written as a vector: $$ \begin{aligned} \boldsymbol{z}_{i}^{\text{hidden}} &= \Big( b_i^{\text{hidden}} + w_i^{\text{hidden}}x_1 , \ b_i^{\text{hidden}} + w_i^{\text{hidden}} x_2, \ \dots \, , \ b_i^{\text{hidden}} + w_i^{\text{hidden}} x_N\Big) \\ &= \begin{pmatrix} b_i^{\text{hidden}} & w_i^{\text{hidden}} \end{pmatrix} \begin{pmatrix} 1 & 1 & \dots & 1 \\ x_1 & x_2 & \dots & x_N \end{pmatrix} \\ &= \boldsymbol{p}_{i, \text{hidden}}^T X \end{aligned} $$

Final technicalities II

The vector $ \boldsymbol{p}_{i, \text{hidden}}^T $ constitutes each row in $ P_{\text{hidden} } $, which contains the weights for the neural network to minimize according to \eqref{min}.

After having found $ \boldsymbol{z}_{i}^{\text{hidden}} $ for every $ i $-th neuron within the hidden layer, the vector will be sent to an activation function $ a_i(\boldsymbol{z}) $.

In this example, the sigmoid function has been chosen to be the activation function for each hidden neuron: $$ f(z) = \frac{1}{1 + \exp{(-z)}} $$

The output $ \boldsymbol{x}_i^{\text{hidden}} $ from each $ i $-th hidden neuron is: $$ \boldsymbol{x}_i^{\text{hidden} } = f\big( \boldsymbol{z}_{i}^{\text{hidden}} \big) $$

The outputs $ \boldsymbol{x}_i^{\text{hidden} } $ are then sent to the output layer.

The output layer consists of one neuron in this case, and combines the output from each of the neurons in the hidden layers. The output layer combines the results from the hidden layer using some weights $ w_i^{\text{output}} $ and biases $ b_i^{\text{output}} $. In this case, it is assumes that the number of neurons in the output layer is one.

Final technicalities III

The procedure of weighting the output neuron $ j $ in the hidden layer to the $ i $-th neuron in the output layer is similar as for the hidden layer described previously. $$ \begin{aligned} z_{1,j}^{\text{output}} & = \begin{pmatrix} b_1^{\text{output}} & \boldsymbol{w}_1^{\text{output}} \end{pmatrix} \begin{pmatrix} 1 \\ \boldsymbol{x}_j^{\text{hidden}} \end{pmatrix} \end{aligned} $$

Final technicalities IV

Expressing $ z_{1,j}^{\text{output}} $ as a vector gives the following way of weighting the inputs from the hidden layer: $$ \boldsymbol{z}_{1}^{\text{output}} = \begin{pmatrix} b_1^{\text{output}} & \boldsymbol{w}_1^{\text{output}} \end{pmatrix} \begin{pmatrix} 1 & 1 & \dots & 1 \\ \boldsymbol{x}_1^{\text{hidden}} & \boldsymbol{x}_2^{\text{hidden}} & \dots & \boldsymbol{x}_N^{\text{hidden}} \end{pmatrix} $$

In this case we seek a continuous range of values since we are approximating a function. This means that after computing $ \boldsymbol{z}_{1}^{\text{output}} $ the neural network has finished its feed forward step, and $ \boldsymbol{z}_{1}^{\text{output}} $ is the final output of the network.

Back propagation

The next step is to decide how the parameters should be changed such that they minimize the cost function.

The chosen cost function for this problem is $$ C(\boldsymbol{x}, P) = \frac{1}{N} \sum_i \big(g_t'(x_i, P) - ( -\gamma g_t(x_i, P) \big)^2 $$

Gradient descent

The idea of the gradient descent algorithm is to update parameters in a direction where the cost function decreases goes to a minimum.

In general, the update of some parameters $ \boldsymbol{\omega} $ given a cost function defined by some weights $ \boldsymbol{\omega} $, $ C(\boldsymbol{x}, \boldsymbol{\omega}) $, goes as follows: $$ \boldsymbol{\omega}_{\text{new} } = \boldsymbol{\omega} - \lambda \nabla_{\boldsymbol{\omega}} C(\boldsymbol{x}, \boldsymbol{\omega}) $$

for a number of iterations or until $ \big|\big| \boldsymbol{\omega}_{\text{new} } - \boldsymbol{\omega} \big|\big|$ becomes smaller than some given tolerance.

The value of $ \lambda $ decides how large steps the algorithm must take in the direction of $ \nabla_{\boldsymbol{\omega}} C(\boldsymbol{x}, \boldsymbol{\omega})$. The notation $ \nabla_{\boldsymbol{\omega}} $ express the gradient with respect to the elements in $ \boldsymbol{\omega} $.

In our case, we have to minimize the cost function $ C(\boldsymbol{x}, P) $ with respect to the two sets of weights and biases, that is for the hidden layer $ P_{\text{hidden} } $ and for the output layer $ P_{\text{output} } $ .

This means that $ P_{\text{hidden} } $ and $ P_{\text{output} } $ is updated by $$ \begin{aligned} P_{\text{hidden},\text{new}} &= P_{\text{hidden}} - \lambda \nabla_{P_{\text{hidden}}} C(\boldsymbol{x}, P) \\ P_{\text{output},\text{new}} &= P_{\text{output}} - \lambda \nabla_{P_{\text{output}}} C(\boldsymbol{x}, P) \end{aligned} $$

The code for solving the ODE

import autograd.numpy as np
from autograd import grad, elementwise_grad
import autograd.numpy.random as npr
from matplotlib import pyplot as plt

def sigmoid(z):
    return 1/(1 + np.exp(-z))

# Assuming one input, hidden, and output layer
def neural_network(params, x):

    # Find the weights (including and biases) for the hidden and output layer.
    # Assume that params is a list of parameters for each layer.
    # The biases are the first element for each array in params,
    # and the weights are the remaning elements in each array in params.

    w_hidden = params[0]
    w_output = params[1]

    # Assumes input x being an one-dimensional array
    num_values = np.size(x)
    x = x.reshape(-1, num_values)

    # Assume that the input layer does nothing to the input x
    x_input = x

    ## Hidden layer:

    # Add a row of ones to include bias
    x_input = np.concatenate((np.ones((1,num_values)), x_input ), axis = 0)

    z_hidden = np.matmul(w_hidden, x_input)
    x_hidden = sigmoid(z_hidden)

    ## Output layer:

    # Include bias:
    x_hidden = np.concatenate((np.ones((1,num_values)), x_hidden ), axis = 0)

    z_output = np.matmul(w_output, x_hidden)
    x_output = z_output

    return x_output

# The trial solution using the deep neural network:
def g_trial(x,params, g0 = 10):
    return g0 + x*neural_network(params,x)

# The right side of the ODE:
def g(x, g_trial, gamma = 2):
    return -gamma*g_trial

# The cost function:
def cost_function(P, x):

    # Evaluate the trial function with the current parameters P
    g_t = g_trial(x,P)

    # Find the derivative w.r.t x of the neural network
    d_net_out = elementwise_grad(neural_network,1)(P,x)

    # Find the derivative w.r.t x of the trial function
    d_g_t = elementwise_grad(g_trial,0)(x,P)

    # The right side of the ODE
    func = g(x, g_t)

    err_sqr = (d_g_t - func)**2
    cost_sum = np.sum(err_sqr)

    return cost_sum / np.size(err_sqr)

# Solve the exponential decay ODE using neural network with one input, hidden, and output layer
def solve_ode_neural_network(x, num_neurons_hidden, num_iter, lmb):
    ## Set up initial weights and biases

    # For the hidden layer
    p0 = npr.randn(num_neurons_hidden, 2 )

    # For the output layer
    p1 = npr.randn(1, num_neurons_hidden + 1 ) # +1 since bias is included

    P = [p0, p1]

    print('Initial cost: %g'%cost_function(P, x))

    ## Start finding the optimal weights using gradient descent

    # Find the Python function that represents the gradient of the cost function
    # w.r.t the 0-th input argument -- that is the weights and biases in the hidden and output layer
    cost_function_grad = grad(cost_function,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        # Evaluate the gradient at the current weights and biases in P.
        # The cost_grad consist now of two arrays;
        # one for the gradient w.r.t P_hidden and
        # one for the gradient w.r.t P_output
        cost_grad =  cost_function_grad(P, x)

        P[0] = P[0] - lmb * cost_grad[0]
        P[1] = P[1] - lmb * cost_grad[1]

    print('Final cost: %g'%cost_function(P, x))

    return P

def g_analytic(x, gamma = 2, g0 = 10):
    return g0*np.exp(-gamma*x)

# Solve the given problem
if __name__ == '__main__':
    # Set seed such that the weight are initialized
    # with same weights and biases for every run.
    npr.seed(15)

    ## Decide the vales of arguments to the function to solve
    N = 10
    x = np.linspace(0, 1, N)

    ## Set up the initial parameters
    num_hidden_neurons = 10
    num_iter = 10000
    lmb = 0.001

    # Use the network
    P = solve_ode_neural_network(x, num_hidden_neurons, num_iter, lmb)

    # Print the deviation from the trial solution and true solution
    res = g_trial(x,P)
    res_analytical = g_analytic(x)

    print('Max absolute difference: %g'%np.max(np.abs(res - res_analytical)))

    # Plot the results
    plt.figure(figsize=(10,10))

    plt.title('Performance of neural network solving an ODE compared to the analytical solution')
    plt.plot(x, res_analytical)
    plt.plot(x, res[0,:])
    plt.legend(['analytical','nn'])
    plt.xlabel('x')
    plt.ylabel('g(x)')
    plt.show()

The network with one input layer, specified number of hidden layers, and one output layer

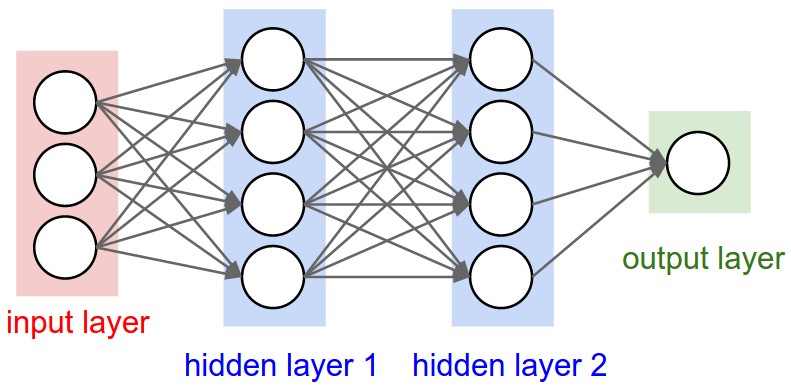

It is also possible to extend the construction of our network into a more general one, allowing the network to contain more than one hidden layers.

The number of neurons within each hidden layer are given as a list of integers in the program below.

import autograd.numpy as np
from autograd import grad, elementwise_grad
import autograd.numpy.random as npr
from matplotlib import pyplot as plt

def sigmoid(z):
    return 1/(1 + np.exp(-z))

# The neural network with one input layer and one output layer,
# but with number of hidden layers specified by the user.
def deep_neural_network(deep_params, x):
    # N_hidden is the number of hidden layers

    N_hidden = np.size(deep_params) - 1 # -1 since params consists of
                                        # parameters to all the hidden
                                        # layers AND the output layer.

    # Assumes input x being an one-dimensional array
    num_values = np.size(x)
    x = x.reshape(-1, num_values)

    # Assume that the input layer does nothing to the input x
    x_input = x

    # Due to multiple hidden layers, define a variable referencing to the
    # output of the previous layer:
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_values)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_values)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output

# The trial solution using the deep neural network:
def g_trial_deep(x,params, g0 = 10):
    return g0 + x*deep_neural_network(params, x)

# The right side of the ODE:
def g(x, g_trial, gamma = 2):
    return -gamma*g_trial

# The same cost function as before, but calls deep_neural_network instead.
def cost_function_deep(P, x):

    # Evaluate the trial function with the current parameters P
    g_t = g_trial_deep(x,P)

    # Find the derivative w.r.t x of the neural network
    d_net_out = elementwise_grad(deep_neural_network,1)(P,x)

    # Find the derivative w.r.t x of the trial function
    d_g_t = elementwise_grad(g_trial_deep,0)(x,P)

    # The right side of the ODE
    func = g(x, g_t)

    err_sqr = (d_g_t - func)**2
    cost_sum = np.sum(err_sqr)

    return cost_sum / np.size(err_sqr)

# Solve the exponential decay ODE using neural network with one input and one output layer,
# but with specified number of hidden layers from the user.
def solve_ode_deep_neural_network(x, num_neurons, num_iter, lmb):
    # num_hidden_neurons is now a list of number of neurons within each hidden layer

    # The number of elements in the list num_hidden_neurons thus represents
    # the number of hidden layers.

    # Find the number of hidden layers:
    N_hidden = np.size(num_neurons)

    ## Set up initial weights and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 )
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: %g'%cost_function_deep(P, x))

    ## Start finding the optimal weights using gradient descent

    # Find the Python function that represents the gradient of the cost function
    # w.r.t the 0-th input argument -- that is the weights and biases in the hidden and output layer
    cost_function_deep_grad = grad(cost_function_deep,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        # Evaluate the gradient at the current weights and biases in P.
        # The cost_grad consist now of N_hidden + 1 arrays; the gradient w.r.t the weights and biases
        # in the hidden layers and output layers evaluated at x.
        cost_deep_grad =  cost_function_deep_grad(P, x)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_deep_grad[l]

    print('Final cost: %g'%cost_function_deep(P, x))

    return P

def g_analytic(x, gamma = 2, g0 = 10):
    return g0*np.exp(-gamma*x)

# Solve the given problem
if __name__ == '__main__':
    npr.seed(15)

    ## Decide the vales of arguments to the function to solve
    N = 10
    x = np.linspace(0, 1, N)

    ## Set up the initial parameters
    num_hidden_neurons = np.array([10,10])
    num_iter = 10000
    lmb = 0.001

    P = solve_ode_deep_neural_network(x, num_hidden_neurons, num_iter, lmb)

    res = g_trial_deep(x,P)
    res_analytical = g_analytic(x)

    plt.figure(figsize=(10,10))

    plt.title('Performance of a deep neural network solving an ODE compared to the analytical solution')
    plt.plot(x, res_analytical)
    plt.plot(x, res[0,:])
    plt.legend(['analytical','dnn'])
    plt.ylabel('g(x)')
    plt.show()

Example: Population growth

A logistic model of population growth assumes that a population converges toward an equilibrium. The population growth can be modeled by $$ \begin{equation} \label{log} g'(t) = \alpha g(t)(A - g(t)) \end{equation} $$

where $ g(t) $ is the population density at time $ t $, $ \alpha > 0 $ the growth rate and $ A > 0 $ is the maximum population number in the environment. Also, at $ t = 0 $ the population has the size $ g(0) = g_0 $, where $ g_0 $ is some chosen constant.

In this example, similar network as for the exponential decay using Autograd has been used to solve the equation. However, as the implementation might suffer from e.g numerical instability and high execution time (this might be more apparent in the examples solving PDEs), using a library like TensorFlow is recommended. Here, we stay with a more simple approach and implement for comparison, the simple forward Euler method.

Setting up the problem

Here, we will model a population $ g(t) $ in an environment having carrying capacity $ A $. The population follows the model $$ \begin{equation} \label{solveode_population} g'(t) = \alpha g(t)(A - g(t)) \end{equation} $$

The trial solution

We will get a slightly different trial solution, as the boundary conditions are different compared to the case for exponential decay.

A possible trial solution satisfying the condition $ g(0) = g_0 $ could be $$ h_1(t) = g_0 + t \cdot N(t,P) $$

with $ N(t,P) $ being the output from the neural network with weights and biases for each layer collected in the set $ P $.

The analytical solution is $$ g(t) = \frac{Ag_0}{g_0 + (A - g_0)\exp(-\alpha A t)} $$

The program using Autograd

The network will be the similar as for the exponential decay example, but with some small modifications for our problem.

import autograd.numpy as np
from autograd import grad, elementwise_grad
import autograd.numpy.random as npr
from matplotlib import pyplot as plt

def sigmoid(z):
    return 1/(1 + np.exp(-z))

# Function to get the parameters.
# Done such that one can easily change the paramaters after one's liking.
def get_parameters():
    alpha = 2
    A = 1
    g0 = 1.2
    return alpha, A, g0

def deep_neural_network(P, x):
    # N_hidden is the number of hidden layers
    N_hidden = np.size(P) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assumes input x being an one-dimensional array
    num_values = np.size(x)
    x = x.reshape(-1, num_values)

    # Assume that the input layer does nothing to the input x
    x_input = x

    # Due to multiple hidden layers, define a variable referencing to the
    # output of the previous layer:
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = P[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_values)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = P[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_values)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output


def cost_function_deep(P, x):

    # Evaluate the trial function with the current parameters P
    g_t = g_trial_deep(x,P)

    # Find the derivative w.r.t x of the trial function
    d_g_t = elementwise_grad(g_trial_deep,0)(x,P)

    # The right side of the ODE
    func = f(x, g_t)

    err_sqr = (d_g_t - func)**2
    cost_sum = np.sum(err_sqr)

    return cost_sum / np.size(err_sqr)

# The right side of the ODE:
def f(x, g_trial):
    alpha,A, g0 = get_parameters()
    return alpha*g_trial*(A - g_trial)

# The trial solution using the deep neural network:
def g_trial_deep(x, params):
    alpha,A, g0 = get_parameters()
    return g0 + x*deep_neural_network(params,x)

# The analytical solution:
def g_analytic(t):
    alpha,A, g0 = get_parameters()
    return A*g0/(g0 + (A - g0)*np.exp(-alpha*A*t))

def solve_ode_deep_neural_network(x, num_neurons, num_iter, lmb):
    # num_hidden_neurons is now a list of number of neurons within each hidden layer

    # Find the number of hidden layers:
    N_hidden = np.size(num_neurons)

    ## Set up initial weigths and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 )
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: %g'%cost_function_deep(P, x))

    ## Start finding the optimal weigths using gradient descent

    # Find the Python function that represents the gradient of the cost function
    # w.r.t the 0-th input argument -- that is the weights and biases in the hidden and output layer
    cost_function_deep_grad = grad(cost_function_deep,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        # Evaluate the gradient at the current weights and biases in P.
        # The cost_grad consist now of N_hidden + 1 arrays; the gradient w.r.t the weights and biases
        # in the hidden layers and output layers evaluated at x.
        cost_deep_grad =  cost_function_deep_grad(P, x)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_deep_grad[l]

    print('Final cost: %g'%cost_function_deep(P, x))

    return P

if __name__ == '__main__':
    npr.seed(4155)

    ## Decide the vales of arguments to the function to solve
    Nt = 10
    T = 1
    t = np.linspace(0,T, Nt)

    ## Set up the initial parameters
    num_hidden_neurons = [100, 50, 25]
    num_iter = 1000
    lmb = 1e-3

    P = solve_ode_deep_neural_network(t, num_hidden_neurons, num_iter, lmb)

    g_dnn_ag = g_trial_deep(t,P)
    g_analytical = g_analytic(t)

    # Find the maximum absolute difference between the solutons:
    diff_ag = np.max(np.abs(g_dnn_ag - g_analytical))
    print("The max absolute difference between the solutions is: %g"%diff_ag)

    plt.figure(figsize=(10,10))

    plt.title('Performance of neural network solving an ODE compared to the analytical solution')
    plt.plot(t, g_analytical)
    plt.plot(t, g_dnn_ag[0,:])
    plt.legend(['analytical','nn'])
    plt.xlabel('t')
    plt.ylabel('g(t)')

    plt.show()

Using forward Euler to solve the ODE

Euler's method uses Taylor series to approximate the value at a function $ f $ at a step $ \Delta x $ from $ x $: $$ f(x + \Delta x) \approx f(x) + \Delta x f'(x) $$

In our case, using Euler's method to approximate the value of $ g $ at a step $ \Delta t $ from $ t $ yields $$ \begin{aligned} g(t + \Delta t) &\approx g(t) + \Delta t g'(t) \\ &= g(t) + \Delta t \big(\alpha g(t)(A - g(t))\big) \end{aligned} $$ along with the condition that $ g(0) = g_0 $.

Let $ t_i = i \cdot \Delta t $ where $ \Delta t = \frac{T}{N_t-1} $ where $ T $ is the final time our solver must solve for and $ N_t $ the number of values for $ t \in [0, T] $ for $ i = 0, \dots, N_t-1 $.

For $ i \geq 1 $, we have that $$ \begin{aligned} t_i &= i\Delta t \\ &= (i - 1)\Delta t + \Delta t \\ &= t_{i-1} + \Delta t \end{aligned} $$

Now, if $ g_i = g(t_i) $ then $$ \begin{equation} \begin{aligned} g_i &= g(t_i) \\ &= g(t_{i-1} + \Delta t) \\ &\approx g(t_{i-1}) + \Delta t \big(\alpha g(t_{i-1})(A - g(t_{i-1}))\big) \\ &= g_{i-1} + \Delta t \big(\alpha g_{i-1}(A - g_{i-1})\big) \end{aligned} \end{equation} \label{odenum} $$ for $ i \geq 1 $ and $ g_0 = g(t_0) = g(0) = g_0 $.

Equation \eqref{odenum} could be implemented in the following way, extending the program that uses the network using Autograd:

# Assume that all function definitions from the example program using Autograd
# are located here.

if __name__ == '__main__':
    npr.seed(4155)

    ## Decide the vales of arguments to the function to solve
    Nt = 10
    T = 1
    t = np.linspace(0,T, Nt)

    ## Set up the initial parameters
    num_hidden_neurons = [100,50,25]
    num_iter = 1000
    lmb = 1e-3

    P = solve_ode_deep_neural_network(t, num_hidden_neurons, num_iter, lmb)

    g_dnn_ag = g_trial_deep(t,P)
    g_analytical = g_analytic(t)

    # Find the maximum absolute difference between the solutons:
    diff_ag = np.max(np.abs(g_dnn_ag - g_analytical))
    print("The max absolute difference between the solutions is: %g"%diff_ag)

    plt.figure(figsize=(10,10))

    plt.title('Performance of neural network solving an ODE compared to the analytical solution')
    plt.plot(t, g_analytical)
    plt.plot(t, g_dnn_ag[0,:])
    plt.legend(['analytical','nn'])
    plt.xlabel('t')
    plt.ylabel('g(t)')

    ## Find an approximation to the funtion using forward Euler

    alpha, A, g0 = get_parameters()
    dt = T/(Nt - 1)

    # Perform forward Euler to solve the ODE
    g_euler = np.zeros(Nt)
    g_euler[0] = g0

    for i in range(1,Nt):
        g_euler[i] = g_euler[i-1] + dt*(alpha*g_euler[i-1]*(A - g_euler[i-1]))

    # Print the errors done by each method
    diff1 = np.max(np.abs(g_euler - g_analytical))
    diff2 = np.max(np.abs(g_dnn_ag[0,:] - g_analytical))

    print('Max absolute difference between Euler method and analytical: %g'%diff1)
    print('Max absolute difference between deep neural network and analytical: %g'%diff2)

    # Plot results
    plt.figure(figsize=(10,10))

    plt.plot(t,g_euler)
    plt.plot(t,g_analytical)
    plt.plot(t,g_dnn_ag[0,:])

    plt.legend(['euler','analytical','dnn'])
    plt.xlabel('Time t')
    plt.ylabel('g(t)')

    plt.show()

Example: Solving the one dimensional Poisson equation

The Poisson equation for $ g(x) $ in one dimension is $$ \begin{equation} \label{poisson} -g''(x) = f(x) \end{equation} $$

The conditions that $ g(x) $ is chosen to fulfill, are $$ \begin{align*} g(0) &= 0 \\ g(1) &= 0 \end{align*} $$

This equation can be solved numerically using programs where e.g Autograd and TensorFlow are used. The results from the networks can then be compared to the analytical solution. In addition, it could be interesting to see how a typical method for numerically solving second order ODEs compares to the neural networks.

The specific equation to solve for

Here, the function $ g(x) $ to solve for follows the equation $$ -g''(x) = f(x),\qquad x \in (0,1) $$

where $ f(x) $ is a given function, along with the chosen conditions $$ \begin{aligned} g(0) = g(1) = 0 \end{aligned}\label{cond} $$

For this case, a possible trial solution satisfying the conditions could be $$ g_t(x) = x \cdot (1-x) \cdot N(P,x) $$

Solving the equation using Autograd

import autograd.numpy as np
from autograd import grad, elementwise_grad
import autograd.numpy.random as npr
from matplotlib import pyplot as plt

def sigmoid(z):
    return 1/(1 + np.exp(-z))

def deep_neural_network(deep_params, x):
    # N_hidden is the number of hidden layers
    N_hidden = np.size(deep_params) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assumes input x being an one-dimensional array
    num_values = np.size(x)
    x = x.reshape(-1, num_values)

    # Assume that the input layer does nothing to the input x
    x_input = x

    # Due to multiple hidden layers, define a variable referencing to the
    # output of the previous layer:
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_values)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_values)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output

def solve_ode_deep_neural_network(x, num_neurons, num_iter, lmb):
    # num_hidden_neurons is now a list of number of neurons within each hidden layer

    # Find the number of hidden layers:
    N_hidden = np.size(num_neurons)

    ## Set up initial weigths and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 )
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: %g'%cost_function_deep(P, x))

    ## Start finding the optimal weigths using gradient descent

    # Find the Python function that represents the gradient of the cost function
    # w.r.t the 0-th input argument -- that is the weights and biases in the hidden and output layer
    cost_function_deep_grad = grad(cost_function_deep,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        # Evaluate the gradient at the current weights and biases in P.
        # The cost_grad consist now of N_hidden + 1 arrays; the gradient w.r.t the weights and biases
        # in the hidden layers and output layers evaluated at x.
        cost_deep_grad =  cost_function_deep_grad(P, x)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_deep_grad[l]

    print('Final cost: %g'%cost_function_deep(P, x))

    return P

## Set up the cost function specified for this Poisson equation:

# The right side of the ODE
def f(x):
    return (3*x + x**2)*np.exp(x)

def cost_function_deep(P, x):

    # Evaluate the trial function with the current parameters P
    g_t = g_trial_deep(x,P)

    # Find the derivative w.r.t x of the trial function
    d2_g_t = elementwise_grad(elementwise_grad(g_trial_deep,0))(x,P)

    right_side = f(x)

    err_sqr = (-d2_g_t - right_side)**2
    cost_sum = np.sum(err_sqr)

    return cost_sum/np.size(err_sqr)

# The trial solution:
def g_trial_deep(x,P):
    return x*(1-x)*deep_neural_network(P,x)

# The analytic solution;
def g_analytic(x):
    return x*(1-x)*np.exp(x)

if __name__ == '__main__':
    npr.seed(4155)

    ## Decide the vales of arguments to the function to solve
    Nx = 10
    x = np.linspace(0,1, Nx)

    ## Set up the initial parameters
    num_hidden_neurons = [200,100]
    num_iter = 1000
    lmb = 1e-3

    P = solve_ode_deep_neural_network(x, num_hidden_neurons, num_iter, lmb)

    g_dnn_ag = g_trial_deep(x,P)
    g_analytical = g_analytic(x)

    # Find the maximum absolute difference between the solutons:
    max_diff = np.max(np.abs(g_dnn_ag - g_analytical))
    print("The max absolute difference between the solutions is: %g"%max_diff)

    plt.figure(figsize=(10,10))

    plt.title('Performance of neural network solving an ODE compared to the analytical solution')
    plt.plot(x, g_analytical)
    plt.plot(x, g_dnn_ag[0,:])
    plt.legend(['analytical','nn'])
    plt.xlabel('x')
    plt.ylabel('g(x)')
    plt.show()

Comparing with a numerical scheme

The Poisson equation is possible to solve using Taylor series to approximate the second derivative.

Using Taylor series, the second derivative can be expressed as $$ g''(x) = \frac{g(x + \Delta x) - 2g(x) + g(x-\Delta x)}{\Delta x^2} + E_{\Delta x}(x) $$

where $ \Delta x $ is a small step size and $ E_{\Delta x}(x) $ being the error term.

Looking away from the error terms gives an approximation to the second derivative: $$ \begin{equation} \label{approx} g''(x) \approx \frac{g(x + \Delta x) - 2g(x) + g(x-\Delta x)}{\Delta x^2} \end{equation} $$

If $ x_i = i \Delta x = x_{i-1} + \Delta x $ and $ g_i = g(x_i) $ for $ i = 1,\dots N_x - 2 $ with $ N_x $ being the number of values for $ x $, \eqref{approx} becomes $$ \begin{aligned} g''(x_i) &\approx \frac{g(x_i + \Delta x) - 2g(x_i) + g(x_i -\Delta x)}{\Delta x^2} \\ &= \frac{g_{i+1} - 2g_i + g_{i-1}}{\Delta x^2} \end{aligned} $$

Since we know from our problem that $$ \begin{aligned} -g''(x) &= f(x) \\ &= (3x + x^2)\exp(x) \end{aligned} $$

along with the conditions $ g(0) = g(1) = 0 $, the following scheme can be used to find an approximate solution for $ g(x) $ numerically: $$ \begin{equation} \begin{aligned} -\Big( \frac{g_{i+1} - 2g_i + g_{i-1}}{\Delta x^2} \Big) &= f(x_i) \\ -g_{i+1} + 2g_i - g_{i-1} &= \Delta x^2 f(x_i) \end{aligned} \end{equation} \label{odesys} $$

for $ i = 1, \dots, N_x - 2 $ where $ g_0 = g_{N_x - 1} = 0 $ and $ f(x_i) = (3x_i + x_i^2)\exp(x_i) $, which is given for our specific problem.

The equation can be rewritten into a matrix equation: $$ \begin{aligned} \begin{pmatrix} 2 & -1 & 0 & \dots & 0 \\ -1 & 2 & -1 & \dots & 0 \\ \vdots & & \ddots & & \vdots \\ 0 & \dots & -1 & 2 & -1 \\ 0 & \dots & 0 & -1 & 2\\ \end{pmatrix} \begin{pmatrix} g_1 \\ g_2 \\ \vdots \\ g_{N_x - 3} \\ g_{N_x - 2} \end{pmatrix} &= \Delta x^2 \begin{pmatrix} f(x_1) \\ f(x_2) \\ \vdots \\ f(x_{N_x - 3}) \\ f(x_{N_x - 2}) \end{pmatrix} \\ \boldsymbol{A}\boldsymbol{g} &= \boldsymbol{f}, \end{aligned} $$

Setting up the code

We can then compare the result from this numerical scheme with the output from our network using Autograd:

import autograd.numpy as np
from autograd import grad, elementwise_grad
import autograd.numpy.random as npr
from matplotlib import pyplot as plt

def sigmoid(z):
    return 1/(1 + np.exp(-z))

def deep_neural_network(deep_params, x):
    # N_hidden is the number of hidden layers
    N_hidden = np.size(deep_params) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assumes input x being an one-dimensional array
    num_values = np.size(x)
    x = x.reshape(-1, num_values)

    # Assume that the input layer does nothing to the input x
    x_input = x

    # Due to multiple hidden layers, define a variable referencing to the
    # output of the previous layer:
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_values)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_values)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output

def solve_ode_deep_neural_network(x, num_neurons, num_iter, lmb):
    # num_hidden_neurons is now a list of number of neurons within each hidden layer

    # Find the number of hidden layers:
    N_hidden = np.size(num_neurons)

    ## Set up initial weigths and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 )
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: %g'%cost_function_deep(P, x))

    ## Start finding the optimal weigths using gradient descent

    # Find the Python function that represents the gradient of the cost function
    # w.r.t the 0-th input argument -- that is the weights and biases in the hidden and output layer
    cost_function_deep_grad = grad(cost_function_deep,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        # Evaluate the gradient at the current weights and biases in P.
        # The cost_grad consist now of N_hidden + 1 arrays; the gradient w.r.t the weights and biases
        # in the hidden layers and output layers evaluated at x.
        cost_deep_grad =  cost_function_deep_grad(P, x)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_deep_grad[l]

    print('Final cost: %g'%cost_function_deep(P, x))

    return P

## Set up the cost function specified for this Poisson equation:

# The right side of the ODE
def f(x):
    return (3*x + x**2)*np.exp(x)

def cost_function_deep(P, x):

    # Evaluate the trial function with the current parameters P
    g_t = g_trial_deep(x,P)

    # Find the derivative w.r.t x of the trial function
    d2_g_t = elementwise_grad(elementwise_grad(g_trial_deep,0))(x,P)

    right_side = f(x)

    err_sqr = (-d2_g_t - right_side)**2
    cost_sum = np.sum(err_sqr)

    return cost_sum/np.size(err_sqr)

# The trial solution:
def g_trial_deep(x,P):
    return x*(1-x)*deep_neural_network(P,x)

# The analytic solution;
def g_analytic(x):
    return x*(1-x)*np.exp(x)

if __name__ == '__main__':
    npr.seed(4155)

    ## Decide the vales of arguments to the function to solve
    Nx = 10
    x = np.linspace(0,1, Nx)

    ## Set up the initial parameters
    num_hidden_neurons = [200,100]
    num_iter = 1000
    lmb = 1e-3

    P = solve_ode_deep_neural_network(x, num_hidden_neurons, num_iter, lmb)

    g_dnn_ag = g_trial_deep(x,P)
    g_analytical = g_analytic(x)

    # Find the maximum absolute difference between the solutons:

    plt.figure(figsize=(10,10))

    plt.title('Performance of neural network solving an ODE compared to the analytical solution')
    plt.plot(x, g_analytical)
    plt.plot(x, g_dnn_ag[0,:])
    plt.legend(['analytical','nn'])
    plt.xlabel('x')
    plt.ylabel('g(x)')

    ## Perform the computation using the numerical scheme

    dx = 1/(Nx - 1)

    # Set up the matrix A
    A = np.zeros((Nx-2,Nx-2))

    A[0,0] = 2
    A[0,1] = -1

    for i in range(1,Nx-3):
        A[i,i-1] = -1
        A[i,i] = 2
        A[i,i+1] = -1

    A[Nx - 3, Nx - 4] = -1
    A[Nx - 3, Nx - 3] = 2

    # Set up the vector f
    f_vec = dx**2 * f(x[1:-1])

    # Solve the equation
    g_res = np.linalg.solve(A,f_vec)

    g_vec = np.zeros(Nx)
    g_vec[1:-1] = g_res

    # Print the differences between each method
    max_diff1 = np.max(np.abs(g_dnn_ag - g_analytical))
    max_diff2 = np.max(np.abs(g_vec - g_analytical))
    print("The max absolute difference between the analytical solution and DNN Autograd: %g"%max_diff1)
    print("The max absolute difference between the analytical solution and numerical scheme: %g"%max_diff2)

    # Plot the results
    plt.figure(figsize=(10,10))

    plt.plot(x,g_vec)
    plt.plot(x,g_analytical)
    plt.plot(x,g_dnn_ag[0,:])

    plt.legend(['numerical scheme','analytical','dnn'])
    plt.show()

Partial Differential Equations

A partial differential equation (PDE) has a solution here the function is defined by multiple variables. The equation may involve all kinds of combinations of which variables the function is differentiated with respect to.

In general, a partial differential equation for a function $ g(x_1,\dots,x_N) $ with $ N $ variables may be expressed as $$ \begin{equation} \label{PDE} f\left(x_1, \, \dots \, , x_N, \frac{\partial g(x_1,\dots,x_N) }{\partial x_1}, \dots , \frac{\partial g(x_1,\dots,x_N) }{\partial x_N}, \frac{\partial g(x_1,\dots,x_N) }{\partial x_1\partial x_2}, \, \dots \, , \frac{\partial^n g(x_1,\dots,x_N) }{\partial x_N^n} \right) = 0 \end{equation} $$

where $ f $ is an expression involving all kinds of possible mixed derivatives of $ g(x_1,\dots,x_N) $ up to an order $ n $. In order for the solution to be unique, some additional conditions must also be given.

Type of problem

The problem our network must solve for, is similar to the ODE case. We must have a trial solution $ g_t $ at hand.

For instance, the trial solution could be expressed as $$ \begin{align*} g_t(x_1,\dots,x_N) = h_1(x_1,\dots,x_N) + h_2(x_1,\dots,x_N,N(x_1,\dots,x_N,P)) \end{align*} $$ where $ h_1(x_1,\dots,x_N) $ is a function that ensures $ g_t(x_1,\dots,x_N) $ satisfies some given conditions. The neural network $ N(x_1,\dots,x_N,P) $ has weights and biases described by $ P $ and $ h_2(x_1,\dots,x_N,N(x_1,\dots,x_N,P)) $ is an expression using the output from the neural network in some way.

The role of the function $ h_2(x_1,\dots,x_N,N(x_1,\dots,x_N,P)) $, is to ensure that the output of $ N(x_1,\dots,x_N,P) $ is zero when $ g_t(x_1,\dots,x_N) $ is evaluated at the values of $ x_1,\dots,x_N $ where the given conditions must be satisfied. The function $ h_1(x_1,\dots,x_N) $ should alone make $ g_t(x_1,\dots,x_N) $ satisfy the conditions.

Network requirements

The network tries then the minimize the cost function following the same ideas as described for the ODE case, but now with more than one variables to consider. The concept still remains the same; find a set of parameters $ P $ such that the expression $ f $ in \eqref{PDE} is as close to zero as possible.

As for the ODE case, the cost function is the mean squared error that the network must try to minimize. The cost function for the network to minimize is $$ \begin{equation*} C\left(x_1, \dots, x_N, P\right) = \left( f\left(x_1, \, \dots \, , x_N, \frac{\partial g(x_1,\dots,x_N) }{\partial x_1}, \dots , \frac{\partial g(x_1,\dots,x_N) }{\partial x_N}, \frac{\partial g(x_1,\dots,x_N) }{\partial x_1\partial x_2}, \, \dots \, , \frac{\partial^n g(x_1,\dots,x_N) }{\partial x_N^n} \right) \right)^2 \end{equation*} $$

More details

If we let $ \boldsymbol{x} = \big( x_1, \dots, x_N \big) $ be an array containing the values for $ x_1, \dots, x_N $ respectively, the cost function can be reformulated into the following: $$ C\left(\boldsymbol{x}, P\right) = f\left( \left( \boldsymbol{x}, \frac{\partial g(\boldsymbol{x}) }{\partial x_1}, \dots , \frac{\partial g(\boldsymbol{x}) }{\partial x_N}, \frac{\partial g(\boldsymbol{x}) }{\partial x_1\partial x_2}, \, \dots \, , \frac{\partial^n g(\boldsymbol{x}) }{\partial x_N^n} \right) \right)^2 $$

If we also have $ M $ different sets of values for $ x_1, \dots, x_N $, that is $ \boldsymbol{x}_i = \big(x_1^{(i)}, \dots, x_N^{(i)}\big) $ for $ i = 1,\dots,M $ being the rows in matrix $ X $, the cost function can be generalized into $$ \begin{equation*} C\left(X, P \right) = \sum_{i=1}^M f\left( \left( \boldsymbol{x}_i, \frac{\partial g(\boldsymbol{x}_i) }{\partial x_1}, \dots , \frac{\partial g(\boldsymbol{x}_i) }{\partial x_N}, \frac{\partial g(\boldsymbol{x}_i) }{\partial x_1\partial x_2}, \, \dots \, , \frac{\partial^n g(\boldsymbol{x}_i) }{\partial x_N^n} \right) \right)^2. \end{equation*} $$

Example: The diffusion equation

In one spatial dimension, the equation reads $$ \begin{equation*} \frac{\partial g(x,t)}{\partial t} = \frac{\partial^2 g(x,t)}{\partial x^2} \end{equation*} $$

where a possible choice of conditions are $$ \begin{align*} g(0,t) &= 0 ,\qquad t \geq 0 \\ g(1,t) &= 0, \qquad t \geq 0 \\ g(x,0) &= u(x),\qquad x\in [0,1] \end{align*} $$ with $ u(x) $ being some given function.

Defining the problem

For this case, we want to find $ g(x,t) $ such that $$ \begin{equation} \frac{\partial g(x,t)}{\partial t} = \frac{\partial^2 g(x,t)}{\partial x^2} \end{equation} \label{diffonedim} $$

and $$ \begin{align*} g(0,t) &= 0 ,\qquad t \geq 0 \\ g(1,t) &= 0, \qquad t \geq 0 \\ g(x,0) &= u(x),\qquad x\in [0,1] \end{align*} $$ with $ u(x) = \sin(\pi x) $.

First, let us set up the deep neural network. The deep neural network will follow the same structure as discussed in the examples solving the ODEs. First, we will look into how Autograd could be used in a network tailored to solve for bivariate functions.

Setting up the network using Autograd

The only change to do here, is to extend our network such that functions of multiple parameters are correctly handled. In this case we have two variables in our function to solve for, that is time $ t $ and position $ x $. The variables will be represented by a one-dimensional array in the program. The program will evaluate the network at each possible pair $ (x,t) $, given an array for the desired $ x $-values and $ t $-values to approximate the solution at.

def sigmoid(z):
    return 1/(1 + np.exp(-z))

def deep_neural_network(deep_params, x):
    # x is now a point and a 1D numpy array; make it a column vector
    num_coordinates = np.size(x,0)
    x = x.reshape(num_coordinates,-1)

    num_points = np.size(x,1)

    # N_hidden is the number of hidden layers
    N_hidden = np.size(deep_params) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assume that the input layer does nothing to the input x
    x_input = x
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_points)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_points)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output[0][0]

Setting up the network using Autograd; The trial solution

The cost function must then iterate through the given arrays containing values for $ x $ and $ t $, defines a point $ (x,t) $ the deep neural network and the trial solution is evaluated at, and then finds the Jacobian of the trial solution.

A possible trial solution for this PDE is $$ g_t(x,t) = h_1(x,t) + x(1-x)tN(x,t,P) $$

with $ A(x,t) $ being a function ensuring that $ g_t(x,t) $ satisfies our given conditions, and $ N(x,t,P) $ being the output from the deep neural network using weights and biases for each layer from $ P $.

To fulfill the conditions, $ A(x,t) $ could be: $$ h_1(x,t) = (1-t)\Big(u(x) - \big((1-x)u(0) + x u(1)\big)\Big) = (1-t)u(x) = (1-t)\sin(\pi x) $$ since $ (0) = u(1) = 0 $ and $ u(x) = \sin(\pi x) $.

Why the jacobian?

The Jacobian is used because the program must find the derivative of the trial solution with respect to $ x $ and $ t $.

This gives the necessity of computing the Jacobian matrix, as we want to evaluate the gradient with respect to $ x $ and $ t $ (note that the Jacobian of a scalar-valued multivariate function is simply its gradient).

In Autograd, the differentiation is by default done with respect to the first input argument of your Python function. Since the points is an array representing $ x $ and $ t $, the Jacobian is calculated using the values of $ x $ and $ t $.

To find the second derivative with respect to $ x $ and $ t $, the Jacobian can be found for the second time. The result is a Hessian matrix, which is the matrix containing all the possible second order mixed derivatives of $ g(x,t) $.

# Set up the trial function:
def u(x):
    return np.sin(np.pi*x)

def g_trial(point,P):
    x,t = point
    return (1-t)*u(x) + x*(1-x)*t*deep_neural_network(P,point)

# The right side of the ODE:
def f(point):
    return 0.

# The cost function:
def cost_function(P, x, t):
    cost_sum = 0

    g_t_jacobian_func = jacobian(g_trial)
    g_t_hessian_func = hessian(g_trial)

    for x_ in x:
        for t_ in t:
            point = np.array([x_,t_])

            g_t = g_trial(point,P)
            g_t_jacobian = g_t_jacobian_func(point,P)
            g_t_hessian = g_t_hessian_func(point,P)

            g_t_dt = g_t_jacobian[1]
            g_t_d2x = g_t_hessian[0][0]

            func = f(point)

            err_sqr = ( (g_t_dt - g_t_d2x) - func)**2
            cost_sum += err_sqr

    return cost_sum

Setting up the network using Autograd; The full program

Having set up the network, along with the trial solution and cost function, we can now see how the deep neural network performs by comparing the results to the analytical solution.

The analytical solution of our problem is $$ g(x,t) = \exp(-\pi^2 t)\sin(\pi x) $$

A possible way to implement a neural network solving the PDE, is given below. Be aware, though, that it is fairly slow for the parameters used. A better result is possible, but requires more iterations, and thus longer time to complete.

Indeed, the program below is not optimal in its implementation, but rather serves as an example on how to implement and use a neural network to solve a PDE. Using TensorFlow results in a much better execution time. Try it!

import autograd.numpy as np
from autograd import jacobian,hessian,grad
import autograd.numpy.random as npr
from matplotlib import cm
from matplotlib import pyplot as plt
from mpl_toolkits.mplot3d import axes3d

## Set up the network

def sigmoid(z):
    return 1/(1 + np.exp(-z))

def deep_neural_network(deep_params, x):
    # x is now a point and a 1D numpy array; make it a column vector
    num_coordinates = np.size(x,0)
    x = x.reshape(num_coordinates,-1)

    num_points = np.size(x,1)

    # N_hidden is the number of hidden layers
    N_hidden = np.size(deep_params) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assume that the input layer does nothing to the input x
    x_input = x
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_points)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_points)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output[0][0]

## Define the trial solution and cost function
def u(x):
    return np.sin(np.pi*x)

def g_trial(point,P):
    x,t = point
    return (1-t)*u(x) + x*(1-x)*t*deep_neural_network(P,point)

# The right side of the ODE:
def f(point):
    return 0.

# The cost function:
def cost_function(P, x, t):
    cost_sum = 0

    g_t_jacobian_func = jacobian(g_trial)
    g_t_hessian_func = hessian(g_trial)

    for x_ in x:
        for t_ in t:
            point = np.array([x_,t_])

            g_t = g_trial(point,P)
            g_t_jacobian = g_t_jacobian_func(point,P)
            g_t_hessian = g_t_hessian_func(point,P)

            g_t_dt = g_t_jacobian[1]
            g_t_d2x = g_t_hessian[0][0]

            func = f(point)

            err_sqr = ( (g_t_dt - g_t_d2x) - func)**2
            cost_sum += err_sqr

    return cost_sum /( np.size(x)*np.size(t) )

## For comparison, define the analytical solution
def g_analytic(point):
    x,t = point
    return np.exp(-np.pi**2*t)*np.sin(np.pi*x)

## Set up a function for training the network to solve for the equation
def solve_pde_deep_neural_network(x,t, num_neurons, num_iter, lmb):
    ## Set up initial weigths and biases
    N_hidden = np.size(num_neurons)

    ## Set up initial weigths and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 + 1 ) # 2 since we have two points, +1 to include bias
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: ',cost_function(P, x, t))

    cost_function_grad = grad(cost_function,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        cost_grad =  cost_function_grad(P, x , t)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_grad[l]

    print('Final cost: ',cost_function(P, x, t))

    return P

if __name__ == '__main__':
    ### Use the neural network:
    npr.seed(15)

    ## Decide the vales of arguments to the function to solve
    Nx = 10; Nt = 10
    x = np.linspace(0, 1, Nx)
    t = np.linspace(0,1,Nt)

    ## Set up the parameters for the network
    num_hidden_neurons = [100, 25]
    num_iter = 250
    lmb = 0.01

    P = solve_pde_deep_neural_network(x,t, num_hidden_neurons, num_iter, lmb)

    ## Store the results
    g_dnn_ag = np.zeros((Nx, Nt))
    G_analytical = np.zeros((Nx, Nt))
    for i,x_ in enumerate(x):
        for j, t_ in enumerate(t):
            point = np.array([x_, t_])
            g_dnn_ag[i,j] = g_trial(point,P)

            G_analytical[i,j] = g_analytic(point)

    # Find the map difference between the analytical and the computed solution
    diff_ag = np.abs(g_dnn_ag - G_analytical)
    print('Max absolute difference between the analytical solution and the network: %g'%np.max(diff_ag))

    ## Plot the solutions in two dimensions, that being in position and time

    T,X = np.meshgrid(t,x)

    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Solution from the deep neural network w/ %d layer'%len(num_hidden_neurons))
    s = ax.plot_surface(T,X,g_dnn_ag,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');


    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Analytical solution')
    s = ax.plot_surface(T,X,G_analytical,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');

    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Difference')
    s = ax.plot_surface(T,X,diff_ag,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');

    ## Take some slices of the 3D plots just to see the solutions at particular times
    indx1 = 0
    indx2 = int(Nt/2)
    indx3 = Nt-1

    t1 = t[indx1]
    t2 = t[indx2]
    t3 = t[indx3]

    # Slice the results from the DNN
    res1 = g_dnn_ag[:,indx1]
    res2 = g_dnn_ag[:,indx2]
    res3 = g_dnn_ag[:,indx3]

    # Slice the analytical results
    res_analytical1 = G_analytical[:,indx1]
    res_analytical2 = G_analytical[:,indx2]
    res_analytical3 = G_analytical[:,indx3]

    # Plot the slices
    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t1)
    plt.plot(x, res1)
    plt.plot(x,res_analytical1)
    plt.legend(['dnn','analytical'])

    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t2)
    plt.plot(x, res2)
    plt.plot(x,res_analytical2)
    plt.legend(['dnn','analytical'])

    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t3)
    plt.plot(x, res3)
    plt.plot(x,res_analytical3)
    plt.legend(['dnn','analytical'])

    plt.show()

Example: Solving the wave equation with Neural Networks

The wave equation is $$ \begin{equation*} \frac{\partial^2 g(x,t)}{\partial t^2} = c^2\frac{\partial^2 g(x,t)}{\partial x^2} \end{equation*} $$

Here, the chosen conditions are $$ \begin{align*} g(0,t) &= 0 \\ g(1,t) &= 0 \\ g(x,0) &= u(x) \\ \frac{\partial g(x,t)}{\partial t} \Big |_{t = 0} &= v(x) \end{align*} $$ where $ \frac{\partial g(x,t)}{\partial t} \Big |_{t = 0} $ means the derivative of $ g(x,t) $ with respect to $ t $ is evaluated at $ t = 0 $, and $ u(x) $ and $ v(x) $ being given functions.

The problem to solve for

The wave equation to solve for, is $$ \begin{equation} \label{wave} \frac{\partial^2 g(x,t)}{\partial t^2} = c^2 \frac{\partial^2 g(x,t)}{\partial x^2} \end{equation} $$

where $ c $ is the given wave speed. The chosen conditions for this equation are $$ \begin{aligned} g(0,t) &= 0, &t \geq 0 \\ g(1,t) &= 0, &t \geq 0 \\ g(x,0) &= u(x), &x\in[0,1] \\ \frac{\partial g(x,t)}{\partial t}\Big |_{t = 0} &= v(x), &x \in [0,1] \end{aligned} \label{condwave} $$

In this example, let $ c = 1 $ and $ u(x) = \sin(\pi x) $ and $ v(x) = -\pi\sin(\pi x) $.

The trial solution

The trial solution becomes slightly different since we have other conditions than in the example of solving the diffusion equation. Here, a possible trial solution $ g_t(x,t) $ is $$ g_t(x,t) = h_1(x,t) + x(1-x)t^2N(x,t,P) $$

Note that this trial solution satisfies the conditions only if $ u(0) = v(0) = u(1) = v(1) = 0 $, which is the case in this example.

The analytical solution

The analytical solution for our specific problem, is $$ g(x,t) = \sin(\pi x)\cos(\pi t) - \sin(\pi x)\sin(\pi t) $$

Solving the wave equation - the full program using Autograd

import autograd.numpy as np
from autograd import hessian,grad
import autograd.numpy.random as npr
from matplotlib import cm
from matplotlib import pyplot as plt
from mpl_toolkits.mplot3d import axes3d

## Set up the trial function:
def u(x):
    return np.sin(np.pi*x)

def v(x):
    return -np.pi*np.sin(np.pi*x)

def h1(point):
    x,t = point
    return (1 - t**2)*u(x) + t*v(x)

def g_trial(point,P):
    x,t = point
    return h1(point) + x*(1-x)*t**2*deep_neural_network(P,point)

## Define the cost function
def cost_function(P, x, t):
    cost_sum = 0

    g_t_hessian_func = hessian(g_trial)

    for x_ in x:
        for t_ in t:
            point = np.array([x_,t_])

            g_t_hessian = g_t_hessian_func(point,P)

            g_t_d2x = g_t_hessian[0][0]
            g_t_d2t = g_t_hessian[1][1]

            err_sqr = ( (g_t_d2t - g_t_d2x) )**2
            cost_sum += err_sqr

    return cost_sum / (np.size(t) * np.size(x))

## The neural network
def sigmoid(z):
    return 1/(1 + np.exp(-z))

def deep_neural_network(deep_params, x):
    # x is now a point and a 1D numpy array; make it a column vector
    num_coordinates = np.size(x,0)
    x = x.reshape(num_coordinates,-1)

    num_points = np.size(x,1)

    # N_hidden is the number of hidden layers
    N_hidden = np.size(deep_params) - 1 # -1 since params consist of parameters to all the hidden layers AND the output layer

    # Assume that the input layer does nothing to the input x
    x_input = x
    x_prev = x_input

    ## Hidden layers:

    for l in range(N_hidden):
        # From the list of parameters P; find the correct weigths and bias for this layer
        w_hidden = deep_params[l]

        # Add a row of ones to include bias
        x_prev = np.concatenate((np.ones((1,num_points)), x_prev ), axis = 0)

        z_hidden = np.matmul(w_hidden, x_prev)
        x_hidden = sigmoid(z_hidden)

        # Update x_prev such that next layer can use the output from this layer
        x_prev = x_hidden

    ## Output layer:

    # Get the weights and bias for this layer
    w_output = deep_params[-1]

    # Include bias:
    x_prev = np.concatenate((np.ones((1,num_points)), x_prev), axis = 0)

    z_output = np.matmul(w_output, x_prev)
    x_output = z_output

    return x_output[0][0]

## The analytical solution
def g_analytic(point):
    x,t = point
    return np.sin(np.pi*x)*np.cos(np.pi*t) - np.sin(np.pi*x)*np.sin(np.pi*t)

def solve_pde_deep_neural_network(x,t, num_neurons, num_iter, lmb):
    ## Set up initial weigths and biases
    N_hidden = np.size(num_neurons)

    ## Set up initial weigths and biases

    # Initialize the list of parameters:
    P = [None]*(N_hidden + 1) # + 1 to include the output layer

    P[0] = npr.randn(num_neurons[0], 2 + 1 ) # 2 since we have two points, +1 to include bias
    for l in range(1,N_hidden):
        P[l] = npr.randn(num_neurons[l], num_neurons[l-1] + 1) # +1 to include bias

    # For the output layer
    P[-1] = npr.randn(1, num_neurons[-1] + 1 ) # +1 since bias is included

    print('Initial cost: ',cost_function(P, x, t))

    cost_function_grad = grad(cost_function,0)

    # Let the update be done num_iter times
    for i in range(num_iter):
        cost_grad =  cost_function_grad(P, x , t)

        for l in range(N_hidden+1):
            P[l] = P[l] - lmb * cost_grad[l]


    print('Final cost: ',cost_function(P, x, t))

    return P

if __name__ == '__main__':
    ### Use the neural network:
    npr.seed(15)

    ## Decide the vales of arguments to the function to solve
    Nx = 10; Nt = 10
    x = np.linspace(0, 1, Nx)
    t = np.linspace(0,1,Nt)

    ## Set up the parameters for the network
    num_hidden_neurons = [50,20]
    num_iter = 1000
    lmb = 0.01

    P = solve_pde_deep_neural_network(x,t, num_hidden_neurons, num_iter, lmb)

    ## Store the results
    res = np.zeros((Nx, Nt))
    res_analytical = np.zeros((Nx, Nt))
    for i,x_ in enumerate(x):
        for j, t_ in enumerate(t):
            point = np.array([x_, t_])
            res[i,j] = g_trial(point,P)

            res_analytical[i,j] = g_analytic(point)

    diff = np.abs(res - res_analytical)
    print("Max difference between analytical and solution from nn: %g"%np.max(diff))

    ## Plot the solutions in two dimensions, that being in position and time

    T,X = np.meshgrid(t,x)

    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Solution from the deep neural network w/ %d layer'%len(num_hidden_neurons))
    s = ax.plot_surface(T,X,res,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');


    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Analytical solution')
    s = ax.plot_surface(T,X,res_analytical,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');


    fig = plt.figure(figsize=(10,10))
    ax = fig.gca(projection='3d')
    ax.set_title('Difference')
    s = ax.plot_surface(T,X,diff,linewidth=0,antialiased=False,cmap=cm.viridis)
    ax.set_xlabel('Time $t$')
    ax.set_ylabel('Position $x$');

    ## Take some slices of the 3D plots just to see the solutions at particular times
    indx1 = 0
    indx2 = int(Nt/2)
    indx3 = Nt-1

    t1 = t[indx1]
    t2 = t[indx2]
    t3 = t[indx3]

    # Slice the results from the DNN
    res1 = res[:,indx1]
    res2 = res[:,indx2]
    res3 = res[:,indx3]

    # Slice the analytical results
    res_analytical1 = res_analytical[:,indx1]
    res_analytical2 = res_analytical[:,indx2]
    res_analytical3 = res_analytical[:,indx3]

    # Plot the slices
    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t1)
    plt.plot(x, res1)
    plt.plot(x,res_analytical1)
    plt.legend(['dnn','analytical'])

    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t2)
    plt.plot(x, res2)
    plt.plot(x,res_analytical2)
    plt.legend(['dnn','analytical'])

    plt.figure(figsize=(10,10))
    plt.title("Computed solutions at time = %g"%t3)
    plt.plot(x, res3)
    plt.plot(x,res_analytical3)
    plt.legend(['dnn','analytical'])

    plt.show()

Resources on differential equations and deep learning

Convolutional Neural Networks (recognizing images)

Convolutional neural networks (CNNs) were developed during the last decade of the previous century, with a focus on character recognition tasks. Nowadays, CNNs are a central element in the spectacular success of deep learning methods. The success in for example image classifications have made them a central tool for most machine learning practitioners.

CNNs are very similar to ordinary Neural Networks. They are made up of neurons that have learnable weights and biases. Each neuron receives some inputs, performs a dot product and optionally follows it with a non-linearity. The whole network still expresses a single differentiable score function: from the raw image pixels on one end to class scores at the other. And they still have a loss function (for example Softmax) on the last (fully-connected) layer and all the tips/tricks we developed for learning regular Neural Networks still apply (back propagation, gradient descent etc etc).

What is the difference? CNN architectures make the explicit assumption that the inputs are images, which allows us to encode certain properties into the architecture. These then make the forward function more efficient to implement and vastly reduce the amount of parameters in the network.

Neural Networks vs CNNs

Neural networks are defined as affine transformations, that is a vector is received as input and is multiplied with a matrix of so-called weights (our unknown paramters) to produce an output (to which a bias vector is usually added before passing the result through a nonlinear activation function). This is applicable to any type of input, be it an image, a sound clip or an unordered collection of features: whatever their dimensionality, their representation can always be flattened into a vector before the transformation.

Why CNNS for images, sound files, medical images from CT scans etc?

However, when we consider images, sound clips and many other similar kinds of data, these data have an intrinsic structure. More formally, they share these important properties:

A discrete convolution is a linear transformation that preserves this notion of ordering. It is sparse (only a few input units contribute to a given output unit) and reuses parameters (the same weights are applied to multiple locations in the input).

Regular NNs don’t scale well to full images

As an example, consider an image of size $ 32\times 32\times 3 $ (32 wide, 32 high, 3 color channels), so a single fully-connected neuron in a first hidden layer of a regular Neural Network would have $ 32\times 32\times 3 = 3072 $ weights. This amount still seems manageable, but clearly this fully-connected structure does not scale to larger images. For example, an image of more respectable size, say $ 200\times 200\times 3 $, would lead to neurons that have $ 200\times 200\times 3 = 120,000 $ weights.

We could have several such neurons, and the parameters would add up quickly! Clearly, this full connectivity is wasteful and the huge number of parameters would quickly lead to possible overfitting.

3D volumes of neurons

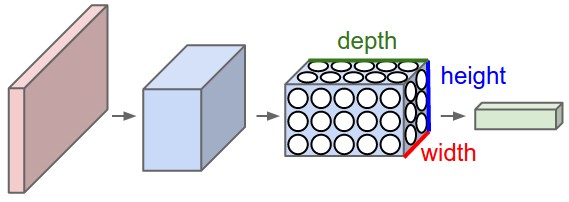

Convolutional Neural Networks take advantage of the fact that the input consists of images and they constrain the architecture in a more sensible way.

In particular, unlike a regular Neural Network, the layers of a CNN have neurons arranged in 3 dimensions: width, height, depth. (Note that the word depth here refers to the third dimension of an activation volume, not to the depth of a full Neural Network, which can refer to the total number of layers in a network.)

To understand it better, the above example of an image with an input volume of activations has dimensions $ 32\times 32\times 3 $ (width, height, depth respectively).

The neurons in a layer will only be connected to a small region of the layer before it, instead of all of the neurons in a fully-connected manner. Moreover, the final output layer could for this specific image have dimensions $ 1\times 1 \times 10 $, because by the end of the CNN architecture we will reduce the full image into a single vector of class scores, arranged along the depth dimension.

Layers used to build CNNs

A simple CNN is a sequence of layers, and every layer of a CNN transforms one volume of activations to another through a differentiable function. We use three main types of layers to build CNN architectures: Convolutional Layer, Pooling Layer, and Fully-Connected Layer (exactly as seen in regular Neural Networks). We will stack these layers to form a full CNN architecture.

Transforming images

CNNs transform the original image layer by layer from the original pixel values to the final class scores.

Observe that some layers contain parameters and other don’t. In particular, the CNN layers perform transformations that are a function of not only the activations in the input volume, but also of the parameters (the weights and biases of the neurons). On the other hand, the RELU/POOL layers will implement a fixed function. The parameters in the CONV/FC layers will be trained with gradient descent so that the class scores that the CNN computes are consistent with the labels in the training set for each image.

CNNs in brief

CNNs in more detail, building convolutional neural networks in Tensorflow and Keras

As discussed above, CNNs are neural networks built from the assumption that the inputs to the network are 2D images. This is important because the number of features or pixels in images grows very fast with the image size, and an enormous number of weights and biases are needed in order to build an accurate network.

As before, we still have our input, a hidden layer and an output. What's novel about convolutional networks are the convolutional and pooling layers stacked in pairs between the input and the hidden layer. In addition, the data is no longer represented as a 2D feature matrix, instead each input is a number of 2D matrices, typically 1 for each color dimension (Red, Green, Blue).

Setting it up

It means that to represent the entire dataset of images, we require a 4D matrix or tensor. This tensor has the dimensions: $$ (n_{inputs},\, n_{pixels, width},\, n_{pixels, height},\, depth) . $$

The MNIST dataset again

The MNIST dataset consists of grayscale images with a pixel size of $ 28\times 28 $, meaning we require $ 28 \times 28 = 724 $ weights to each neuron in the first hidden layer.

If we were to analyze images of size $ 128\times 128 $ we would require $ 128 \times 128 = 16384 $ weights to each neuron. Even worse if we were dealing with color images, as most images are, we have an image matrix of size $ 128\times 128 $ for each color dimension (Red, Green, Blue), meaning 3 times the number of weights $ = 49152 $ are required for every single neuron in the first hidden layer.

Strong correlations

Images typically have strong local correlations, meaning that a small part of the image varies little from its neighboring regions. If for example we have an image of a blue car, we can roughly assume that a small blue part of the image is surrounded by other blue regions.

Therefore, instead of connecting every single pixel to a neuron in the first hidden layer, as we have previously done with deep neural networks, we can instead connect each neuron to a small part of the image (in all 3 RGB depth dimensions). The size of each small area is fixed, and known as a receptive.

Layers of a CNN

A convolution is performed on the image which outputs a 3D volume of neurons. The weights to the input are arranged in a number of 2D matrices, known as filters.

Each filter slides along the input image, taking the dot product between each small part of the image and the filter, in all depth dimensions. This is then passed through a non-linear function, typically the Rectified Linear (ReLu) function, which serves as the activation of the neurons in the first convolutional layer. This is further passed through a pooling layer, which reduces the size of the convolutional layer, e.g. by taking the maximum or average across some small regions, and this serves as input to the next convolutional layer.

Systematic reduction

By systematically reducing the size of the input volume, through convolution and pooling, the network should create representations of small parts of the input, and then from them assemble representations of larger areas. The final pooling layer is flattened to serve as input to a hidden layer, such that each neuron in the final pooling layer is connected to every single neuron in the hidden layer. This then serves as input to the output layer, e.g. a softmax output for classification.

Prerequisites: Collect and pre-process data

# import necessary packages
import numpy as np
import matplotlib.pyplot as plt
from sklearn import datasets


# ensure the same random numbers appear every time
np.random.seed(0)

# display images in notebook
%matplotlib inline
plt.rcParams['figure.figsize'] = (12,12)


# download MNIST dataset
digits = datasets.load_digits()

# define inputs and labels
inputs = digits.images
labels = digits.target

# RGB images have a depth of 3
# our images are grayscale so they should have a depth of 1
inputs = inputs[:,:,:,np.newaxis]

print("inputs = (n_inputs, pixel_width, pixel_height, depth) = " + str(inputs.shape))
print("labels = (n_inputs) = " + str(labels.shape))


# choose some random images to display
n_inputs = len(inputs)
indices = np.arange(n_inputs)
random_indices = np.random.choice(indices, size=5)

for i, image in enumerate(digits.images[random_indices]):
    plt.subplot(1, 5, i+1)
    plt.axis('off')
    plt.imshow(image, cmap=plt.cm.gray_r, interpolation='nearest')
    plt.title("Label: %d" % digits.target[random_indices[i]])
plt.show()

Importing Keras and Tensorflow

from tensorflow.keras import datasets, layers, models
from tensorflow.keras.layers import Input
from tensorflow.keras.models import Sequential      #This allows appending layers to existing models
from tensorflow.keras.layers import Dense           #This allows defining the characteristics of a particular layer
from tensorflow.keras import optimizers             #This allows using whichever optimiser we want (sgd,adam,RMSprop)
from tensorflow.keras import regularizers           #This allows using whichever regularizer we want (l1,l2,l1_l2)
from tensorflow.keras.utils import to_categorical   #This allows using categorical cross entropy as the cost function
#from tensorflow.keras import Conv2D
#from tensorflow.keras import MaxPooling2D
#from tensorflow.keras import Flatten

from sklearn.model_selection import train_test_split

# representation of labels
labels = to_categorical(labels)

# split into train and test data
# one-liner from scikit-learn library
train_size = 0.8
test_size = 1 - train_size
X_train, X_test, Y_train, Y_test = train_test_split(inputs, labels, train_size=train_size,
                                                    test_size=test_size)

Running with Keras

def create_convolutional_neural_network_keras(input_shape, receptive_field,
                                              n_filters, n_neurons_connected, n_categories,
                                              eta, lmbd):
    model = Sequential()
    model.add(layers.Conv2D(n_filters, (receptive_field, receptive_field), input_shape=input_shape, padding='same',
              activation='relu', kernel_regularizer=regularizers.l2(lmbd)))
    model.add(layers.MaxPooling2D(pool_size=(2, 2)))
    model.add(layers.Flatten())
    model.add(layers.Dense(n_neurons_connected, activation='relu', kernel_regularizer=regularizers.l2(lmbd)))
    model.add(layers.Dense(n_categories, activation='softmax', kernel_regularizer=regularizers.l2(lmbd)))

    sgd = optimizers.SGD(lr=eta)
    model.compile(loss='categorical_crossentropy', optimizer=sgd, metrics=['accuracy'])

    return model

epochs = 100
batch_size = 100
input_shape = X_train.shape[1:4]
receptive_field = 3
n_filters = 10
n_neurons_connected = 50
n_categories = 10

eta_vals = np.logspace(-5, 1, 7)
lmbd_vals = np.logspace(-5, 1, 7)

Final part

CNN_keras = np.zeros((len(eta_vals), len(lmbd_vals)), dtype=object)

for i, eta in enumerate(eta_vals):
    for j, lmbd in enumerate(lmbd_vals):
        CNN = create_convolutional_neural_network_keras(input_shape, receptive_field,
                                              n_filters, n_neurons_connected, n_categories,
                                              eta, lmbd)
        CNN.fit(X_train, Y_train, epochs=epochs, batch_size=batch_size, verbose=0)
        scores = CNN.evaluate(X_test, Y_test)

        CNN_keras[i][j] = CNN

        print("Learning rate = ", eta)
        print("Lambda = ", lmbd)
        print("Test accuracy: %.3f" % scores[1])
        print()

Final visualization

# visual representation of grid search
# uses seaborn heatmap, could probably do this in matplotlib
import seaborn as sns

sns.set()

train_accuracy = np.zeros((len(eta_vals), len(lmbd_vals)))
test_accuracy = np.zeros((len(eta_vals), len(lmbd_vals)))

for i in range(len(eta_vals)):
    for j in range(len(lmbd_vals)):
        CNN = CNN_keras[i][j]

        train_accuracy[i][j] = CNN.evaluate(X_train, Y_train)[1]
        test_accuracy[i][j] = CNN.evaluate(X_test, Y_test)[1]


fig, ax = plt.subplots(figsize = (10, 10))
sns.heatmap(train_accuracy, annot=True, ax=ax, cmap="viridis")
ax.set_title("Training Accuracy")
ax.set_ylabel("$\eta$")
ax.set_xlabel("$\lambda$")
plt.show()

fig, ax = plt.subplots(figsize = (10, 10))
sns.heatmap(test_accuracy, annot=True, ax=ax, cmap="viridis")
ax.set_title("Test Accuracy")
ax.set_ylabel("$\eta$")
ax.set_xlabel("$\lambda$")
plt.show()

The CIFAR01 data set

The CIFAR10 dataset contains 60,000 color images in 10 classes, with 6,000 images in each class. The dataset is divided into 50,000 training images and 10,000 testing images. The classes are mutually exclusive and there is no overlap between them.

import tensorflow as tf

from tensorflow.keras import datasets, layers, models
import matplotlib.pyplot as plt

# We import the data set
(train_images, train_labels), (test_images, test_labels) = datasets.cifar10.load_data()

# Normalize pixel values to be between 0 and 1 by dividing by 255.
train_images, test_images = train_images / 255.0, test_images / 255.0

Verifying the data set

To verify that the dataset looks correct, let's plot the first 25 images from the training set and display the class name below each image.

class_names = ['airplane', 'automobile', 'bird', 'cat', 'deer',
               'dog', 'frog', 'horse', 'ship', 'truck']

plt.figure(figsize=(10,10))
for i in range(25):
    plt.subplot(5,5,i+1)
    plt.xticks([])
    plt.yticks([])
    plt.grid(False)
    plt.imshow(train_images[i], cmap=plt.cm.binary)
    # The CIFAR labels happen to be arrays,
    # which is why you need the extra index
    plt.xlabel(class_names[train_labels[i][0]])
plt.show()

Set up the model

The 6 lines of code below define the convolutional base using a common pattern: a stack of Conv2D and MaxPooling2D layers.

As input, a CNN takes tensors of shape (image_height, image_width, color_channels), ignoring the batch size. If you are new to these dimensions, color_channels refers to (R,G,B). In this example, you will configure our CNN to process inputs of shape (32, 32, 3), which is the format of CIFAR images. You can do this by passing the argument input_shape to our first layer.

model = models.Sequential()
model.add(layers.Conv2D(32, (3, 3), activation='relu', input_shape=(32, 32, 3)))
model.add(layers.MaxPooling2D((2, 2)))
model.add(layers.Conv2D(64, (3, 3), activation='relu'))
model.add(layers.MaxPooling2D((2, 2)))
model.add(layers.Conv2D(64, (3, 3), activation='relu'))

# Let's display the architecture of our model so far.

model.summary()

You can see that the output of every Conv2D and MaxPooling2D layer is a 3D tensor of shape (height, width, channels). The width and height dimensions tend to shrink as you go deeper in the network. The number of output channels for each Conv2D layer is controlled by the first argument (e.g., 32 or 64). Typically, as the width and height shrink, you can afford (computationally) to add more output channels in each Conv2D layer.

Add Dense layers on top

To complete our model, you will feed the last output tensor from the convolutional base (of shape (4, 4, 64)) into one or more Dense layers to perform classification. Dense layers take vectors as input (which are 1D), while the current output is a 3D tensor. First, you will flatten (or unroll) the 3D output to 1D, then add one or more Dense layers on top. CIFAR has 10 output classes, so you use a final Dense layer with 10 outputs and a softmax activation.

model.add(layers.Flatten())
model.add(layers.Dense(64, activation='relu'))
model.add(layers.Dense(10))
Here's the complete architecture of our model.

model.summary()

As you can see, our (4, 4, 64) outputs were flattened into vectors of shape (1024) before going through two Dense layers.

Week 42 Solving differential equations and Convolutional (CNN)

Oct 19, 2021

Plan for week 42

Using Automatic differentiation

Solving ODEs with Deep Learning

Ordinary Differential Equations

The trial solution

Minimization process

Minimizing the cost function using gradient descent and automatic differentiation

Example: Exponential decay

The function to solve for

The trial solution

Setup of Network

Reformulating the problem

More technicalities

More details

A possible implementation of a neural network

Technicalities

Final technicalities I

Final technicalities II

Final technicalities III

Final technicalities IV

Back propagation

Gradient descent

The code for solving the ODE

The network with one input layer, specified number of hidden layers, and one output layer

Example: Population growth

Setting up the problem

The trial solution

The program using Autograd

Using forward Euler to solve the ODE

Example: Solving the one dimensional Poisson equation

The specific equation to solve for

Solving the equation using Autograd

Comparing with a numerical scheme

Setting up the code

Partial Differential Equations

Type of problem

Network requirements

More details

Example: The diffusion equation

Defining the problem

Setting up the network using Autograd

Setting up the network using Autograd; The trial solution

Why the jacobian?

Setting up the network using Autograd; The full program

Example: Solving the wave equation with Neural Networks

The problem to solve for

The trial solution

The analytical solution

Solving the wave equation - the full program using Autograd

Resources on differential equations and deep learning

Convolutional Neural Networks (recognizing images)

Neural Networks vs CNNs

Why CNNS for images, sound files, medical images from CT scans etc?

Regular NNs don’t scale well to full images

3D volumes of neurons

Layers used to build CNNs

Transforming images

CNNs in brief

CNNs in more detail, building convolutional neural networks in Tensorflow and Keras

Setting it up

The MNIST dataset again

Strong correlations

Layers of a CNN

Systematic reduction

Prerequisites: Collect and pre-process data

Importing Keras and Tensorflow

Running with Keras

Final part

Final visualization

The CIFAR01 data set

Verifying the data set

Set up the model

Add Dense layers on top

Compile and train the model

Finally, evaluate the model
